Description of this Product

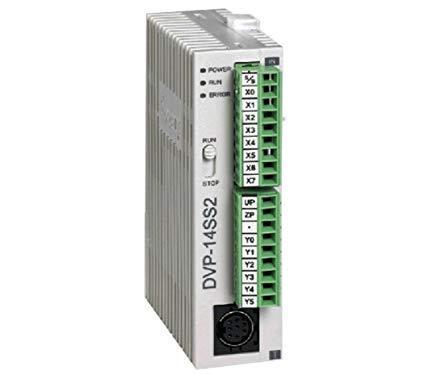

The Delta PLC (DVP14SS211R) is a Programmable Logic Controller. The DVP14SS211R programmable controller is manufactured by Delta Electric. The origin of the Delta DVP14SS211R programmable controller is China. The Delta PLC (DVP14SS211R) A programmable controller is a kind of electronic computer that is monitor the input device. It also helps to produce output based on custom programs. That custom program which is given to the Delta PLC (DVP14SS211R) programmable controller. The Delta DVP14SS211R programmable controller from the DVP series is the most efficient, high-speed, and high-performance. It has also incorporated communication capabilities.
The Delta (DVP14SS211R) programmable controller from the Delta DVP SS Series has an advantage. It includes numerous built-in convenient instructions for simple operation access. It has also a communication function monitoring system. There is possible to expand the input, output points. That is saved a lot of space and makes it simple. Its high performance and extensive I/O points represent a high-value perfect solution for machine control and industrial automation. The Delta DVP series can adopt a 32-bit Central Processing Unit (CPU). There are plug-in terminals for ease of wiring and maintenance. The Delta (DVP14SS211R) programmable logic controller has built-in high-speed counters. That is up to 100 to 200 kHz.
The Delta (DVP14SS211R) supports different programming languages. These are Instruction List (IL), Sequential Function Chart (SFC). There are also two communication ports, these are RS-232, and RS-485. That is MODBUS ASCII/RTU compatible. In Delta PLC (DVP14SS211R) the programmable controller has 4 sets of 10kHz pulse output. There is a program memory for storing programs. The Delta (DVP14SS211R) programmable controller’s program capacity is 8K steps. There are 8 sets of the high-speed counter. There are 14 MPU points, which is expandable up to 494 Input, Output points. There are built-in communication ports. These are RS-232 and RS-485. These communication ports support MODBUS ASCII/RTU protocol.
Specification for this Product
|Series||DVP SS Series|
|Power Supply||24V DC|
|Number of Inputs||8|
|Type of Input||Digital|
|Number of Outputs||6|
|Type of Output||Relay|
|Output Rating||1.5 A|
|Communication Ports||RS-232 and RS-485|
|Program Capacity||8 k steps|
|IO Points||Up to 238 via expansion modules|
|Insulation resistance||> 5M|
|Inrush current||Max. 7.5A at 24V DC|
|Fuse Capacity||1.85A /30V DC, Polyswitch|
|Minimum Operating Temperature||0°C|
|Maximum Operating Temperature||55°C|
Item Condition: New
