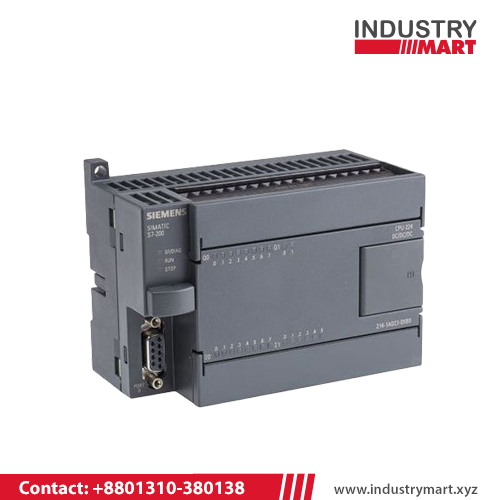

Siemens-S7-200 CPU (6ES7214-1BD23-0XB0)

The 6ES7 214 1BD23 0XB0 from Siemens is SIMATIC S7-200 CPU 224 programmable compact unit. This product is integrated with power supply, analogue and digital I/O’s and Profibus DP extendable.

The rated input voltage is 120VAC / 230VAC

Rated load voltage is 24VDC / 100VAC / 100VAC to 230VAC

The encoder supply voltage is 24VDC and the output current of 280mA

256 S7 counter, 100hours backup

14 digital input and 10 relay output, 2 analogue input and 1 analogue output

Integrated RS 485 interface

IP20 degree of protection

Pug-in connection method

Dimension is 120mm x 80mm x 62mm (WxHxD)

Panel mountable and weight of 410g
